Minelab Vanquish 540 Metal Detector

 A multi-frequency metal detector built with Multi-IQ technology. This entry-level to intermediate-level ground-based metal detector with simple operation embodies Minelab latest and most relevant developments.


Minelab Vanquish 540 Metal Detector



The unit's body, Minelab's wired headphones, and coil protector.


The new Minelab Vanquish series replaces the previous X-Terra line, which has been popular among treasure hunters worldwide for many years.


The Vanquish 540 is the flagship model in the Minelab Vanquish range, offering a wealth of customization and searching features. Ideal for novice treasure hunters, this metal detector operates on a "plug and go" principle, yet is built on the latest advanced technologies from the Australian company Minelab.


The Vanquish 540 features an LCD display that displays the number of VDIs and other target parameters, five factory modes for different search tasks, plus a fine-tuned mode (fixed target detection for more precise target detection), instrument volume, 5-tone target identification, 25 discrimination segments, signal volume control, a 10-segment sensitivity scale, and a 5-level target indicator. It is waterproof against dirt and rain. The multi-frequency function provides excellent results when searching in difficult terrain, such as highly mineralized soil, salty beaches, and wetlands. The waterproof 12-inch (12 x 9-inch) DoubleD coil provides maximum search depth and perimeter for the scanned area.


The Minelab Vankish is a multi-frequency ground-based metal detector (Multi-IQ technology), the same technology used in the older Minelab Equinox 600 or 800 models.


Specifications

Multi-IQ technology (operates simultaneously in a wide frequency range)

Backlit LCD display

VDI number (range -9 to +40)

25-segment discrimination scale

5 search modes (all metals, coins, relics, jewelry, and custom).

Fine Mode

Sensitivity Adjustment (Detection Depth) 10 Levels

Volume Control with 10 Levels

5 Audio Tones

Automatic Ground Balance

Built-in Speaker, 3.5mm (1/8") Headphone Jack

Customizable Iron Indicator

5-Level Target Depth Indicator

12 x 9" Double D Coil (Waterproof)

Bluetooth (for voice communication)

Noise Cancellation: Automatic (19 Channels)

Length: 145cm to 76cm

Power Supply: 4 AA (Rechargeable)

Operating Temperature Range: -10°C to +40°C

Storage Temperature Range: -20°C to +70°C


The Minelab Vankish is a unique model among mid-range metal detectors, as its multi-frequency capabilities are not found in any other metal detector from other manufacturers.

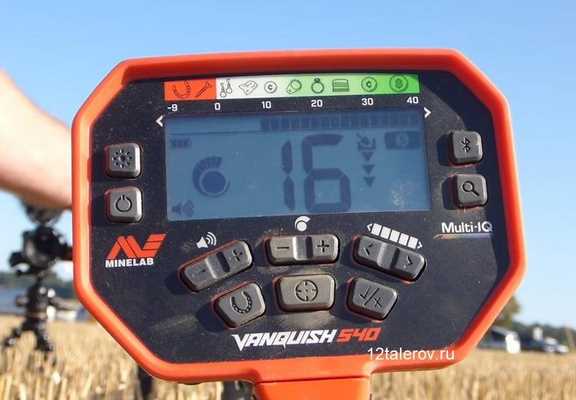

Control Menu

The Vanquish 540's display displays multiple target indicators in the form of intuitive icons and 3-tone voice recognition. , and is controlled by the buttons at the bottom of the screen.
